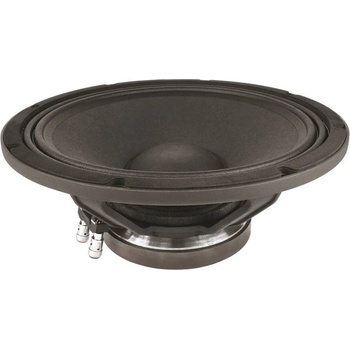

Faital Pro 10PR310 16/ohm

NOMINAL SPECIFICATIONS

Nominal Diameter 250 mm (10 in)

Overall Diameter 261 mm (10.28 in)

Bolt Circle Diameter 246 mm (9.69 in)

Baffle Cutout Diameter 230 mm (9.06 in)

Depth 109 mm (4.29 in)

Flange and Gasket Thickness 12 mm (0.47 in)

Net Weight 4.1 Kg (9.0 lb)

Shipping Box (Single Carton Box) 282 x 280 x 140 mm (11.1 x 11.0 x 5.5 in)

Shipping Weight 4.7 Kg (10.4 lb)

TECHNICAL PARAMETERS

Nominal Impedance 16 Ohm

Minimum Impedance 13.6 Ohm

AES Power Handling (1) 300 W

Maximum Power Handling (2) 600 W

Sensitivity (1W/1m) 97 dB

Frequency Range 60÷4000 Hz

Voice Coil Diameter 65 mm (2.56 in)

Winding Material Al

Former Material Glass Fiber

Winding Depth 12.5 mm (0.49 in)

Magnetic Gap Depth 8 mm (0.31 in)

Flux Density 1.2 T

Magnet Ferrite Ring

Basket Material Aluminum

Demodulation No

Cone Surround (3) M-Roll

NET Air Volume filled by Loudspeaker 1.3 dm^3 (0.046 ft^3)

Spider Profile 1x variable height waves

THIELE AND SMALL PARAMETERS

Fs 65 Hz

Re 12.1 Ohm

Qes 0.52

Qms 5.3

Qts 0.45

Vas 25.2 dm^3 (0.89 ft^3)

Sd 322 cm^2 (49.91 in^2)

Xmax (4) 4.92 mm

Xdamage (5) 15.25 mm

Mms 35 g

Bl 18.7 N/A

Le 1.22 mH

Mmd 31.5 g

Cms 0.17 mm/N

Rms 2.7 Kg/s

Eta Zero 1.36 %

EBP 125 Hz
